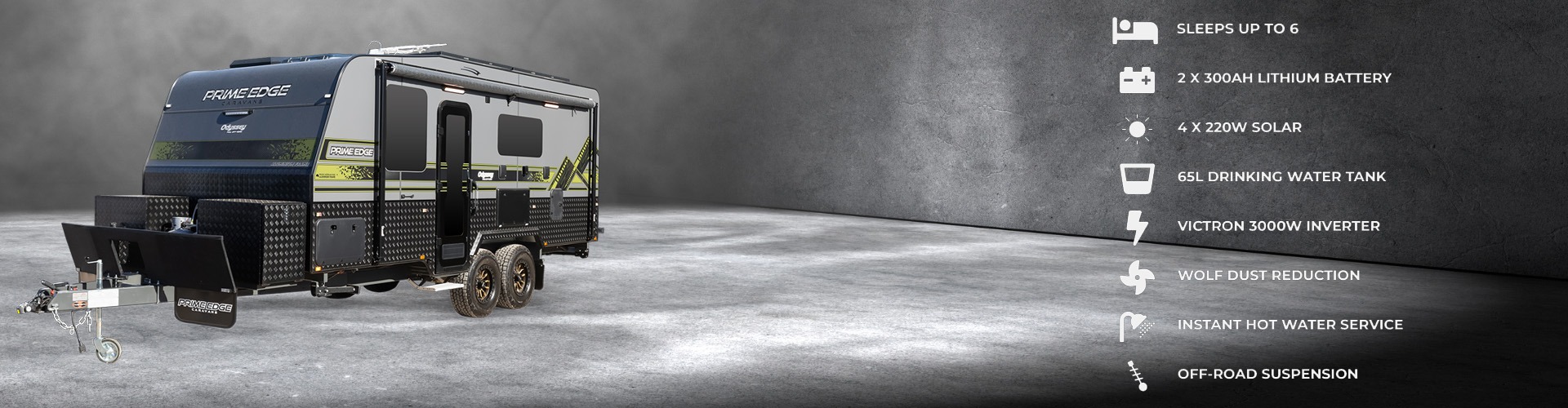

ODYSSEY
Full OFF-ROAD Aluminium Frame Caravan
Next Level off-roading
This is a competitively priced van with a large amount of offroad extras to make the most efficient and comfortable offroad travel using 3.5T Cruisemaster ATX suspension. Available in 18ft 6in to 24ft couples and 2/3/4 bunk varieties.
ALL PRIME EDGE CARAVANS ARE MANUFACTURED IN MELBOURNE USING
Aluminium Frame
One Piece Floor
One Piece Roof
SPECIFICATIONS
Explore the Standard Inclusions and Additional Inclusions for this model – the Prime Edge Odyssey.
CHASSIS
CHASSIS
- Australian Designed, Engineered and Manufactured Chassis using Australian Steel
- 4.5T Cruisemaster
- ATX suspension
- 285/75R16 Copper S/T Maxx
- Supa Gal chassis coating
- 6” A-Frame
- 6” Chassis
- 2” Raiser
- DO-45 Offroad coupling
- 4 Arm Bumper bar
- Spare Wheel & Tyre on
- Rear Bumper
- 500mm A-Frame Extension
PLUMBING
- 2 x 95 Litre Water Tanks with pump
- 2 x 9kg Gas Bottles
- Mains Pressure Inlet
- Tap on A-Frame
- Traditional Water Fillers
- Ceramic Bowl Toilet
- Gas Bayonet
- Premium Sinks and Vanities
- High Quality tapware and shower fittings
- One Piece Fibreglass
- Shower Enclosure
- 95L Grey water tank
- 3 way tap with filtered drinking water
- External shower
- PVC pipes protection
- Instant hot water system
- Diesel heater
- 62L Dedicated
- drinking water tank
EXTERNAL FEATURES
- Premium Caravan Trim
- Aluminium Frame Wall Construction
- XPS Foam Insulation
- One Piece Sandwich Panel Composite Roof (Hail Resistant)
- One Piece Honeycomb Floor
- Hail Resistant Composite Panel on sides, front and rear
- Aluminium raptor finish smooth or checker plate – lower sides, front and rear
- Fully sealed aluminium external doors with compression locks
- Security lock entry door
- Double glazed & Tinted windows
- Roll-out awning
- Picnic Table
- 2 x Large roof hatch with Led
- 2 x Ensuite Hatches with fans
- 4 Arm Bumper bar
- Large toolbox with Gas bottles in the centre
- Stoneguard
- 2 x Jerrycan holders on Bumper bar
- Entertainment Hatch
- V-Flex lining in Tunnel boot
- Single pullout step
- Checker plate water tank protection
- Roadside rope track
ELECTRICAL
- Electronic Sway Control
- 4 x 220 Watt Solar Panels (880w)
- 2 x 300Ah Lithium LIFEPO4 Battery
- Victron Off-grid Multi 3000 system
- Victron Cerbo GX System Monitor
- Victron GX Touch Screen
- Victron SmartShunt Battery Monitor
- Victron Battery Protect 65A
- Victron 30A DC-DC Charger
- Victron Multiplus II Compact 3000w Inverter/ 120A Charger
- 2 x Victron 30A Smart Solar Charge Controller MPPT
- 1 x Battery Circuit Breaker
- 1 x Inverter Circuit Breaker
- Front 20” LED Lightbar
- Rear 20” LED Lightbar
- Roadside 20” LED Lightbar
- Roadside work light
- Fusion Entertainment System with internal and external speakers
- 24” Smart TV with HD Antenna
- External Annex Bug Lights
- yellow/white
- Reverse Camera with car kit
- LED Entry Grab Handle
- Dual USB points throughout
- Double PowerPoints throughout
- Downlights throughout
- Reading lights throughout
- 7 Pin Flat Tow Plug
- Dual camera – Reverse & Rear view
INTERNAL FEATURES
- Fibreglass wall lining
- Interlocking CNC Furniture
- Premium Vinyl Flooring
- Full Height Splashback
- Quality Upholstery with rebated Footstools and
- full height Bed Head
- Acrylic Doors with Soft Close Hinges and Struts
- Rolled Edge or
- Straight Edge Benchtops
- Pillow Top Mattress
- Soft Close Concealed
- Drawer Runners
- Push Button Lock safe Handles
- Towel Rail, Toilet Roll Holder and Towel Ring
- 2 x Sirocco fans in Bedroom
- Premium dust reduction with filter
APPLIANCES
- Full Oven Gas/Electric or 3in1 oven with induction or gas
- 12V Rangehood
- Top Load Washing Machine
- Domestic 224L Compressor Fridge
- Dometic FreshJet 7 Series Plus Reverse Cycle A/C
- Microwave
LAYOUTS
Explore our extensive selection of layouts and choose your perfect Prime Edge Caravan.
