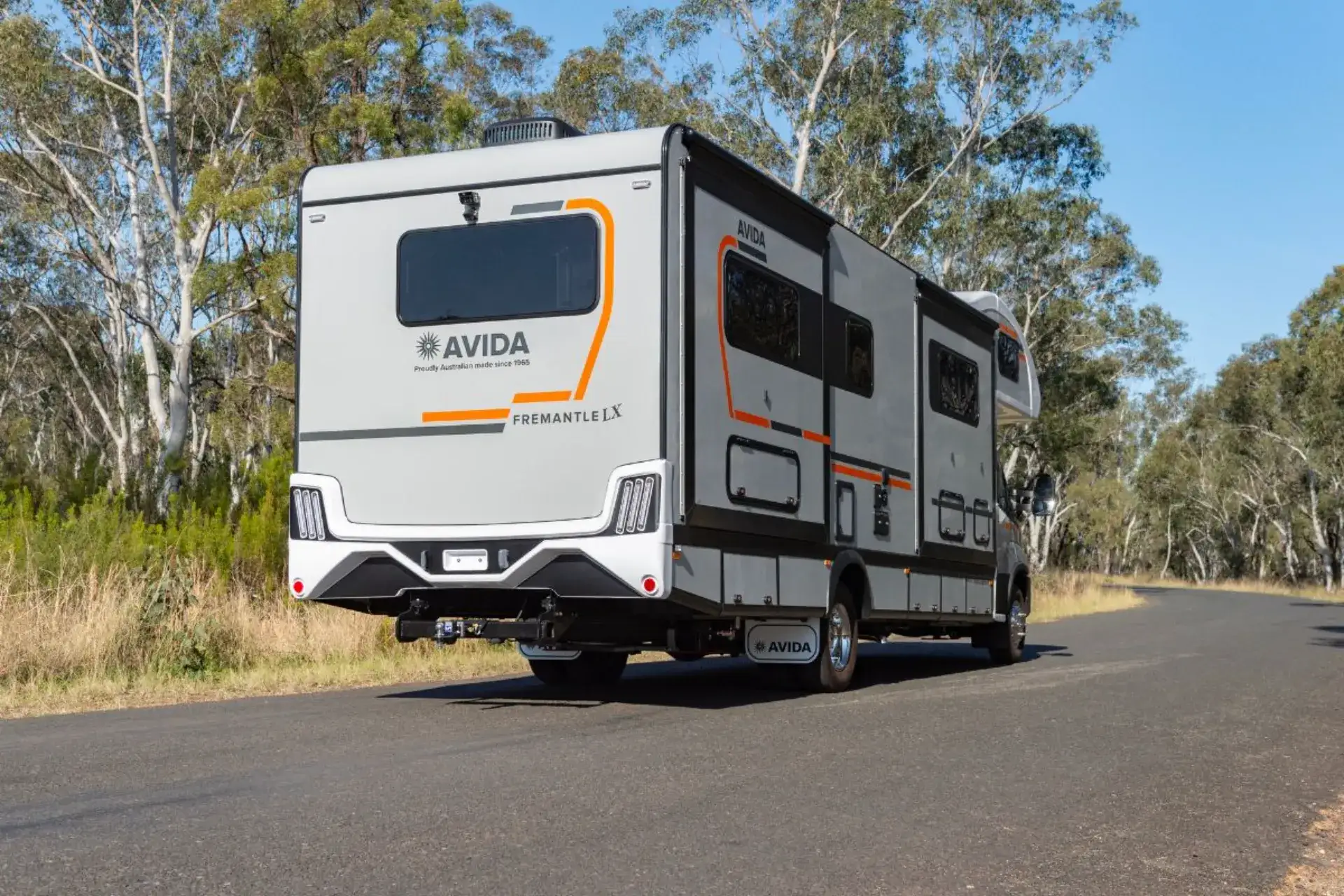

Fremantle LX C 9234 2SL

Specifications and Features

Crafted For Comfort, Built For Adventure

The Fremantle LX motorhome range is innovation and luxury throughout, an abundance of thoughtful features enhance your enjoyment and experience, space to relax and move without restriction.

See what makes the Fremantle LX different to the other motorhomes on the road. Jam packed with plenty of features and optional extras to cater for all lifestyles.

E Model gas free available

E-Model - Gas Free / 48 Volt Electrical

E-Models - Advanced Gas-Free Innovation

The most advanced expression of Avida's E-Model range, these models are fully gas-free and equipped with a powerful 48-volt electrical system. This smart technology delivers efficient energy management, enhanced off-grid capability and a quieter, more sustainable travel experience.

Designed for those who want to stay longer, travel further and reduce their environmental footprint, E-Models with 48-volt electrical systems combine cutting-edge innovation with Avida's trusted quality and nationwide support.

Specifications

HIGHLIGHTED FEATURES

  • Air Conditioner - Roof mounted x2
  • Alarm system – RVsecure / Platinum X
  • Awning - roll out with LED light
  • Awning - slide out awning x2
  • Cooktop - induction with 2 position

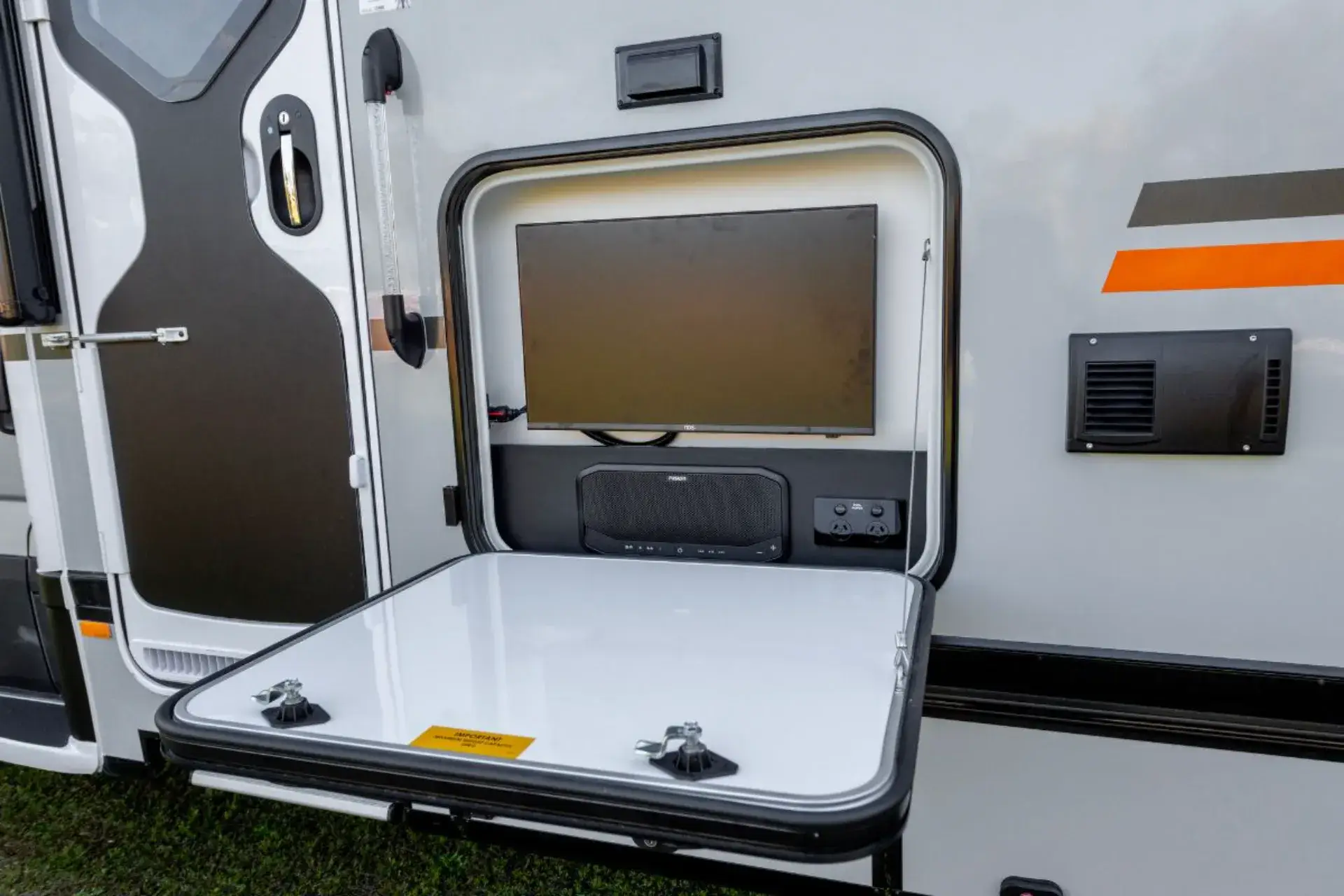

  • External entertainment unit with radio, speakers, table, 12V & 240V power & Smart TV
  • Fridge / Freezer - compressor
  • Gas free model
  • GPS Vehicle Tracker – RVsecure / LOD (Location On Demand)
  • Microwave - multi functional with airfryer, convection oven and grilling
  • Next generation Avida 48V Electrical System
  • Radio: External - Bluetooth All-In-One Audio
  • Radio: Internal - Chassis & Bluetooth All-In-One Audio
  • Reverse camera - Dual cameras
  • Starlink ready connections
  • TV - Smart TV bedroom
  • TV - Smart TV external
  • TV - Smart TV living room
  • Vacuum cleaner - Dyson

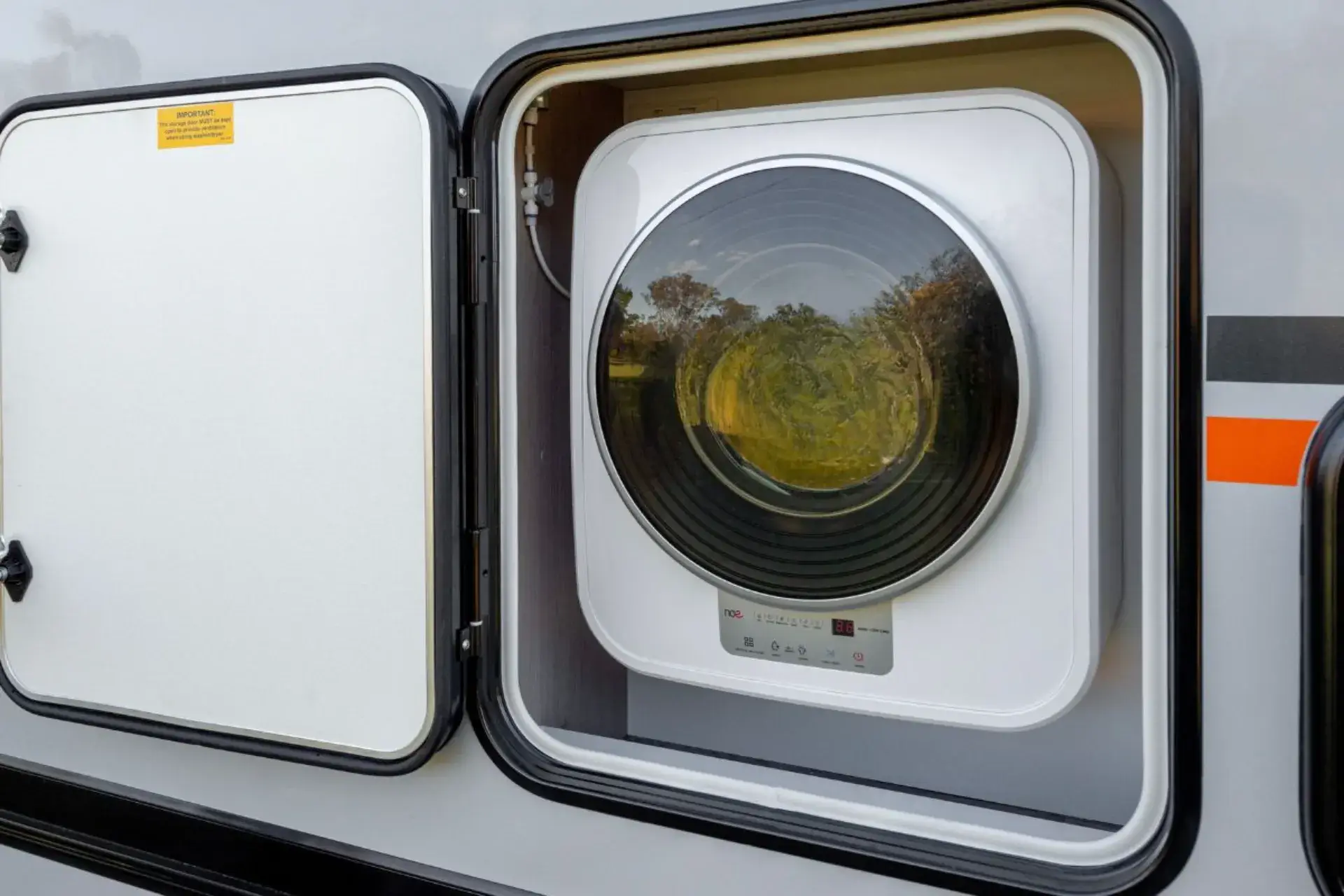

  • Washing machine - washer/dryer

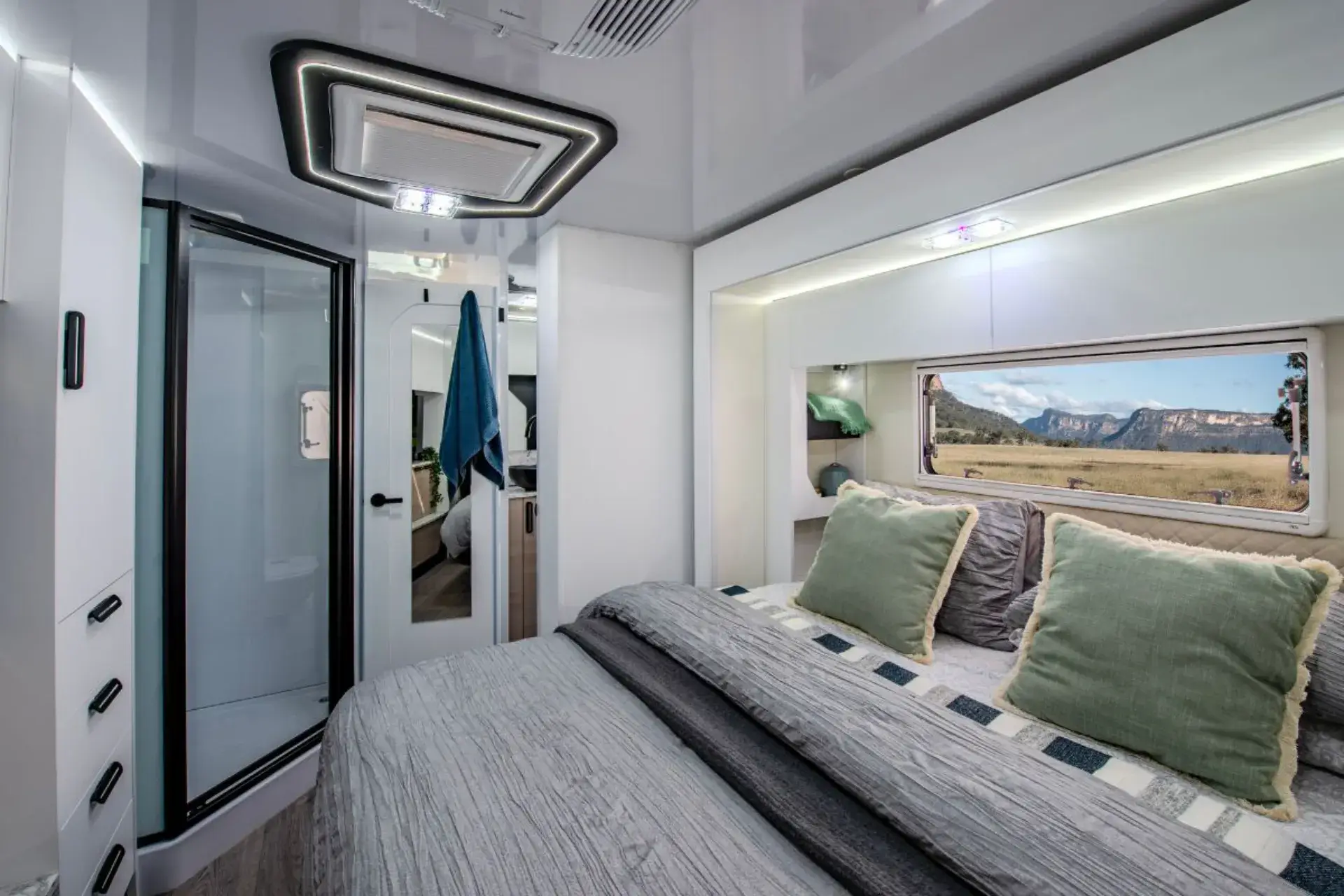

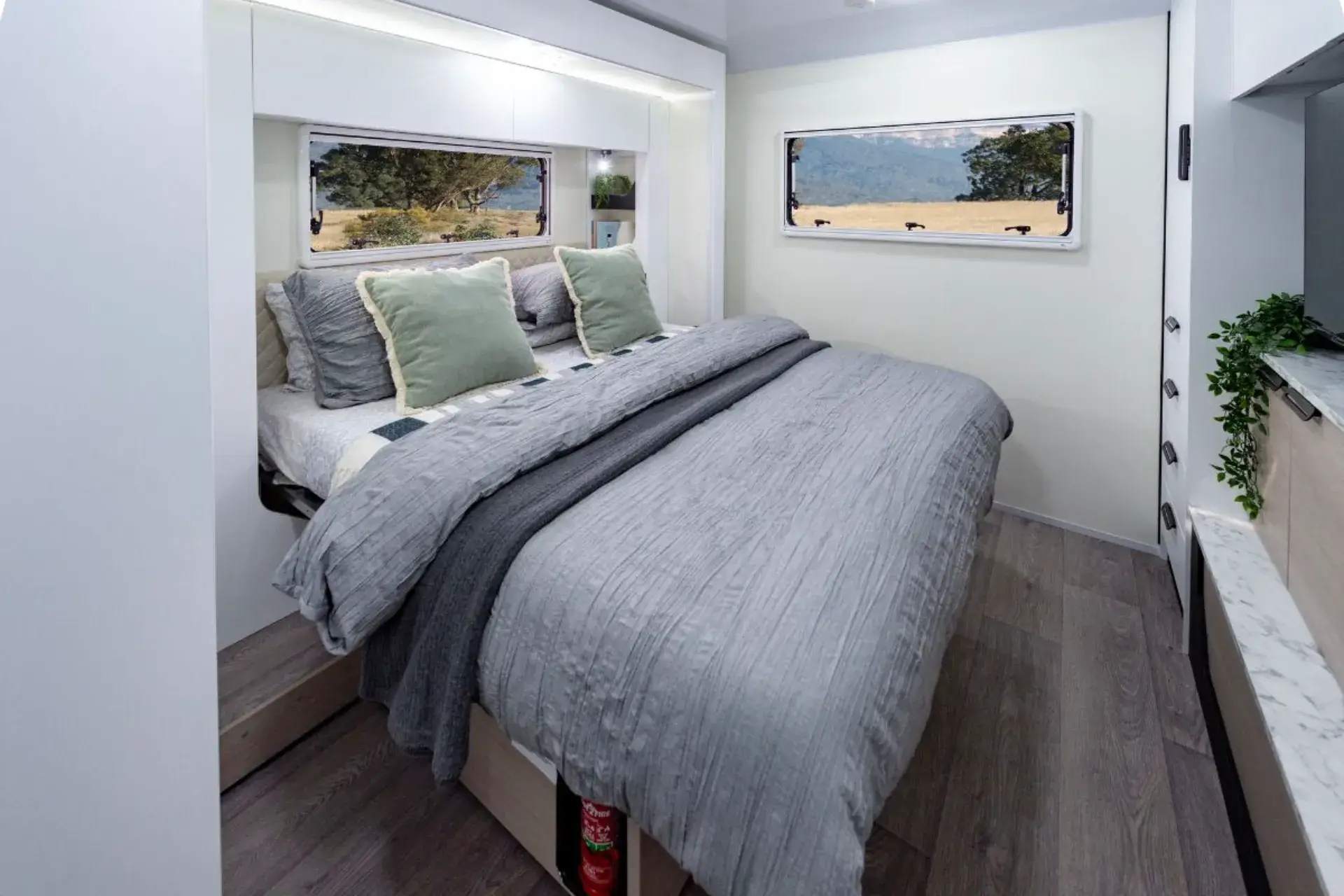

  • Bed - Island (1370 x 1910mm) & Bed - over cabin (1370 x 1910mm)
  • Bedhead - Premium upholstered
  • Benchtop extension
  • Cupboards - Handle free overhead & Soft close
  • Curtains and safety net for bed over cabin
  • Drawers - Residential Soft Close with metal runners
  • Floor - one piece floor
  • Hatch - Bathroom with 12v fan
  • Hatch - with feature pelmet & lighting
  • Hot Water System - Diesel Combi hot water and air heater
  • Ladder for bed over cabin
  • Magazine holder
  • Mat - Removable cabin mat - carpet
  • Pantry x3
  • Privacy screens - windscreen and front doors
  • Seatbelts - 4
  • Seatbelts - Child restraints - 2

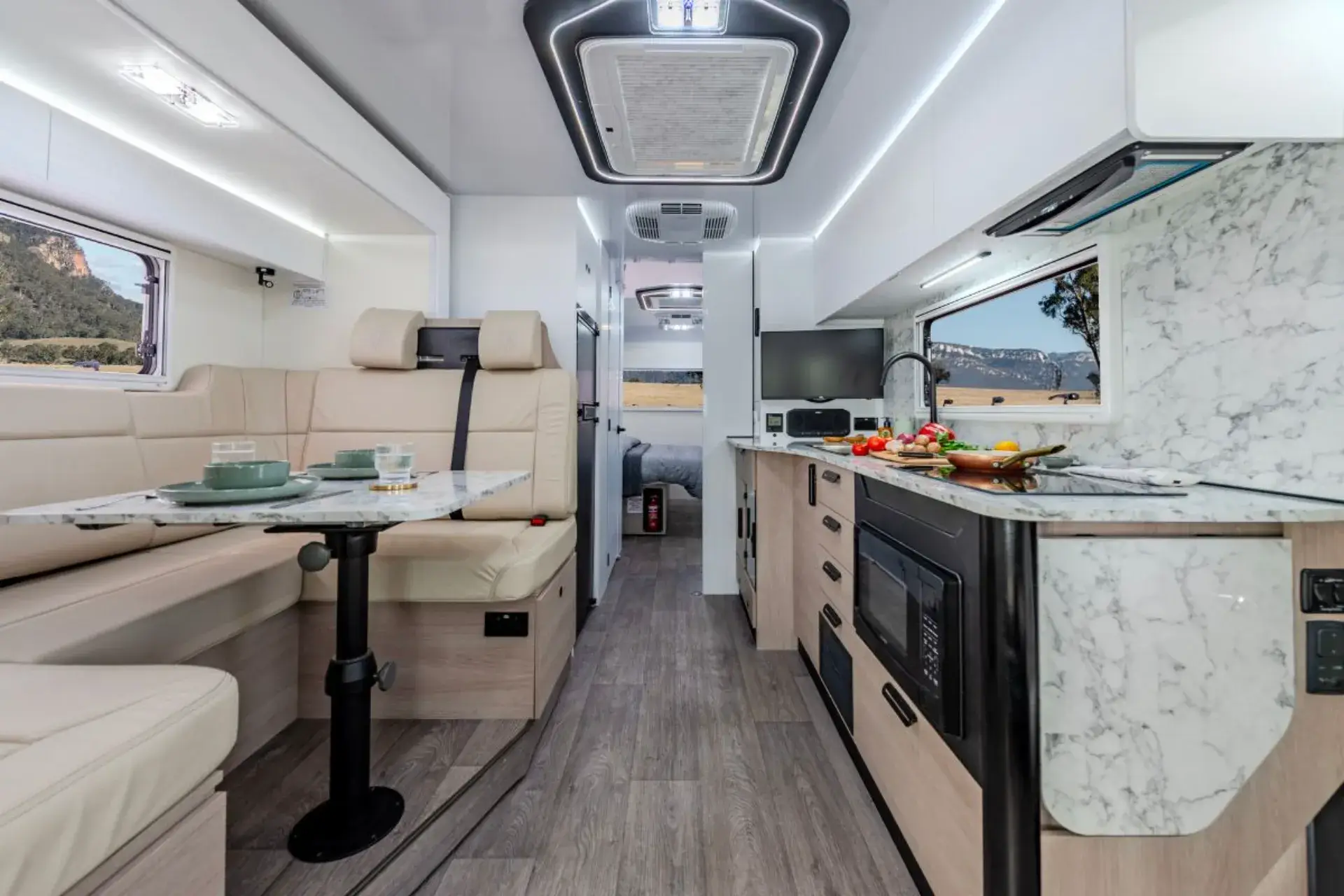

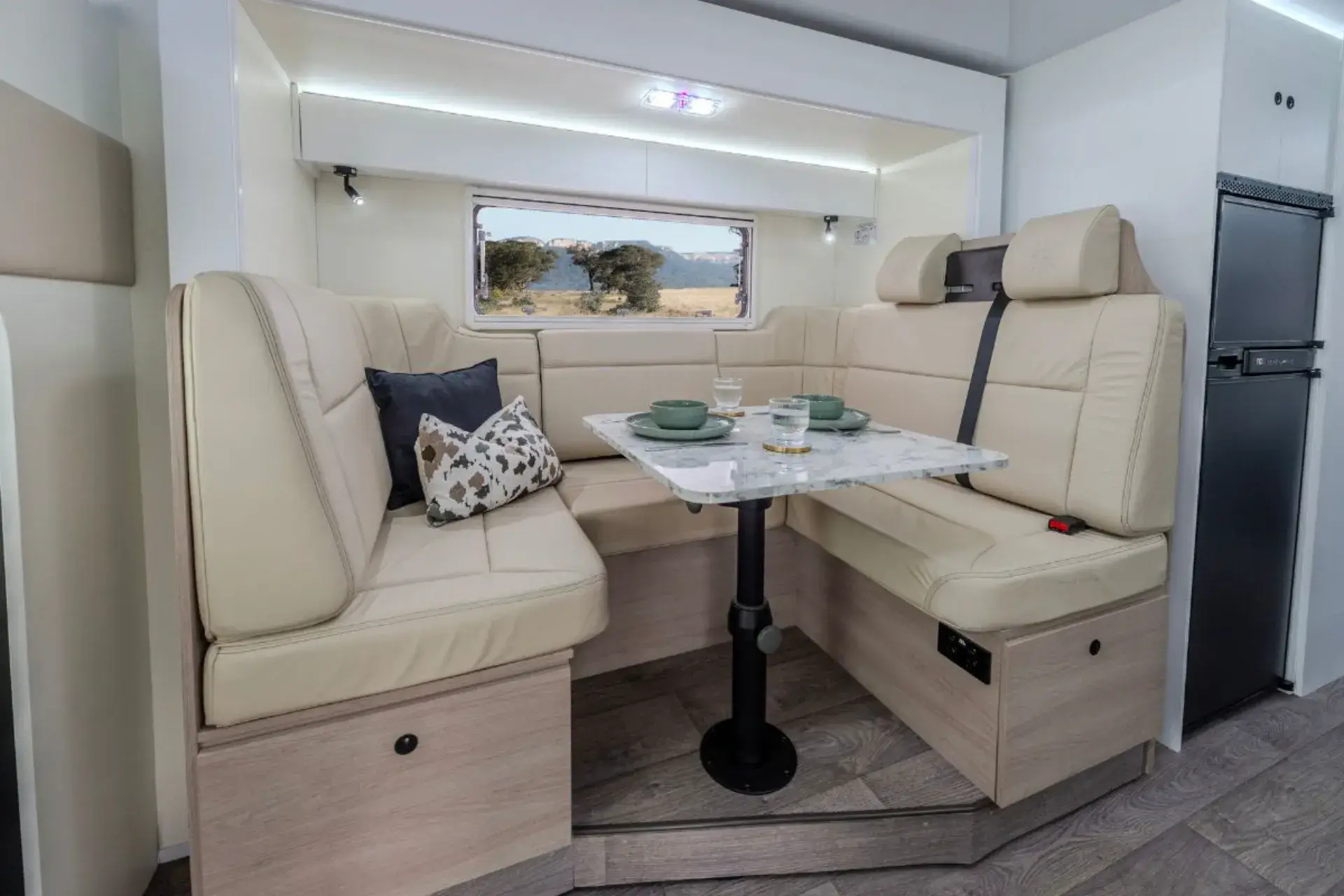

  • Seating - Club lounge & swivel chassis seats
  • Shower
  • Slide out - For extra living space x2
  • Storage - internal
  • Table - Large dining table
  • Toilet - ceramic bowl with cassette
  • Towel hooks x 2
  • Upholstery - Leather with embroidered logo
  • Wardrobe
  • Water filter tap
  • Window in bathroom
  • Windows - double glazed with concertina style blind and fly screen
  • Windows in Luton peak
  • Wine storage cabinet
  • Awning light
  • BBQ Storage
  • Entry door - Four point lock & security screen
  • Entry door grab handle & light
  • Entry step - electric
  • Exterior colour highlights - Black
  • Mud flaps - front & rear wheels
  • Shower - external with hot and cold water
  • Table - Integrated with entertainment unit
  • Walls – External Grey
  • Wheels - Dress rims
  • Battery / Inverter - 10.2kWh battery pack, 5000VA 48v Inverter (chargers: 280A battery & 125A DC/DC)
  • CBE Distribution Board
  • Battery shunt
  • Lighting - Additional feature LED lighting
  • Lighting - LED & Mood lights
  • Lighting - Reading lights with USB & USB-C
  • Power point - 240 volt external
  • Safiery Star Power
  • Solar MPPT system with regulator - 1000w
  • Victron Cerbo
  • Earth leakage protector - 240V
  • Entry step warning buzzer
  • Fire extinguisher x2
  • LP gas leak detector
  • Smoke detector
  • Chassis - Iveco 70C-210 HP
  • Chassis Voltage - 12V
  • Driver's Licence - LR
  • Engine - 4-cylinder, Turbo Diesel
  • Engine Displacement - 2998cc
  • Exterior Height - 3230mm
  • Exterior Length - 9200mm
  • Exterior Width - 2455mm
  • Fuel Tank - 100L
  • Fuel Type - Diesel
  • Gross Combined Mass (GCM) - 10500kg
  • Gross Vehicle Mass (GVM) - 7200kg
  • Interior Height - 2015mm
  • Power - 155kW @ 3500rpm
  • Torque - 470Nm @ 1500rpm
  • Towing Capacity - 3500kg
  • Transmission - Automatic (8 speed)
  • Type - C-Type (Bed over cabin)
  • Water (Fresh) - 300L
  • Water (Grey) - 100L
  • Wheelbase - 5100mm
  • Upgrade GVM
  • Upholstery - Chassis seats - Avida upholstery
  • 60 months Capped Price Servicing
  • 60 months Roadside Assistance (Chassis) - Limited time
  • 60 months Structural Guarantee
  • 60 months Warranty (Avida house) - Limited time
  • 60 months Warranty (Chassis) - Limited time
  • Australian Made
  • Compliance - Certified weight certificate
  • Compliance - RVMAP-accredited manufacturer
  • Facebook support group
  • Over 100 authorised service centres
  • Owners' personal login page - Experience Hub
  • Service Schedule (Avida house) - every 12 months
  • Service Schedule (Chassis) - every 12 Months, 20000 km
  • Sleeps 2 - 6

download a brochure

Get the full picture before you visit. Choose your brand, download the latest brochure, and explore floorplans, specs and features at your own pace — then come and see them in person at our Rockingham showroom.

Floorplan

DESIGNED FOR LONG-HAUL TOURING

The Avida Fremantle LX motorhome range currently features one floorplan. The model is available in a C class, and has two slide-out rooms. **Please read: Due to continuous improvements, floorplans are to be used as a guide only, specifications are subject to change without notice. For more detailed information please contact your nearest dealer.
